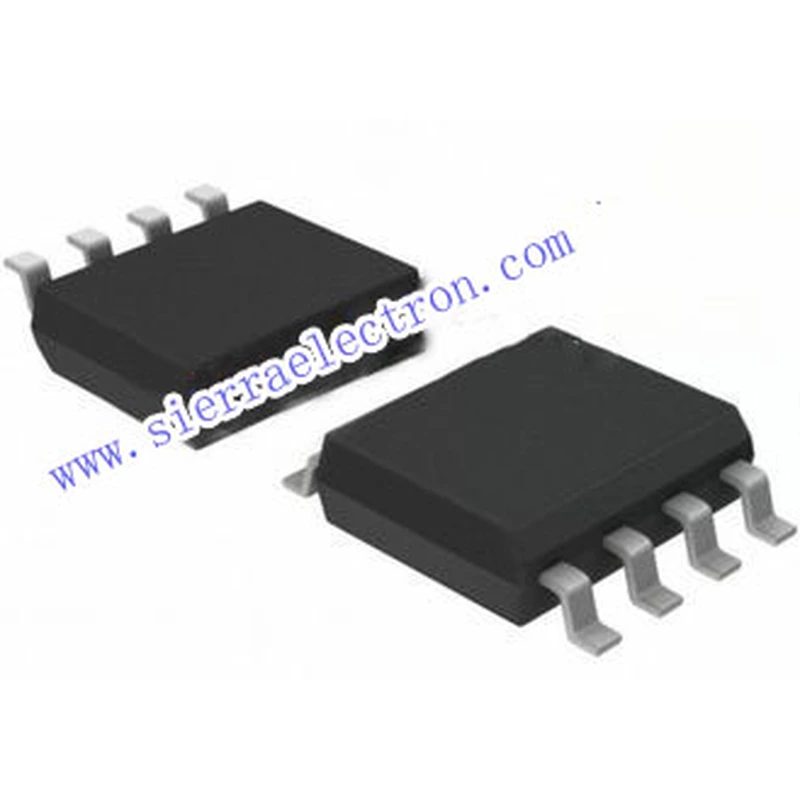

DC/DC converter control circuits
Description:
The MC34063A/E series is a monolithic control circuit delivering the main functions for DC/DC voltage converting.
The device contains an internal temperature compensated reference, comparator, duty cycle controlled oscillator with an active current limit circuit, driver and high current output switch.
Output voltage is adjustable through two external resistors with a 2 % reference accuracy.Employing a minimum number of external components the MC34063A/E devices series is designed for step-down, step-up and voltageinverting applications.
Applications:
â– Output switch current in excess of 1.5 A
â– 2 % reference accuracy
â– Low quiescent current: 2.5 mA (typ.)
â– Operating from 3 V to 40 V
â– Frequency operation to 100 kHz
â– Active current limiting
Specifications:
Datasheets | MC34063xx |
Product Photos | 8-SOIC |
Other Related Documents | MC34063AC View All Specifications |
Product Training Modules | DC to DC Conversion Cookbook |
Standard Package | 2,500 |
Category | Integrated Circuits (ICs) |
Family | PMIC - Voltage Regulators - DC DC Switching Regulators |
Series | - |
Packaging | Tape & Reel (TR) |
Type | Step-Down (Buck), Step-Up (Boost), Inverting |
Output Type | Adjustable |
Number of Outputs | 1 |
Voltage - Output | 1.25 V ~ 38 V |
Voltage - Input | 3 V ~ 40 V |
PWM Type | - |
Frequency - Switching | 100kHz |
Current - Output | 1.5A |
Synchronous Rectifier | No |
Operating Temperature | 0°C ~ 70°C |
Mounting Type | Surface Mount |
Package / Case | 8-SOIC (0.154", 3.90mm Width) |
Supplier Device Package | 8-SO |
Other Names | 497-7850-2 |
